Engineering - Instrument Product   ||    ADTEK    ||    DATAMAX    ||     MEZ    ||    Electro-Precipitator    ||


10 Digit Totalizer (Analogue Input)

* Measuring 0~50/60/100mVdc from shunt or
   0~10V/ 0 (4)~20mA from flow-meter or others.
* Dual Display Screen for Totalizer & Batch or
   PV (process value).
* Accuracy of PV :  ±0.04%.
* PV display range: -19999~29999.

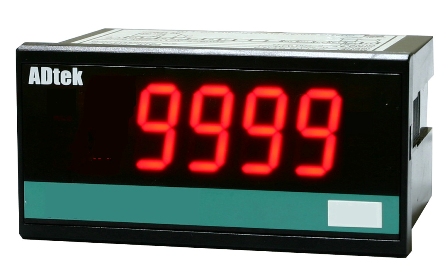

4 Digit Process Indicator (Analogue Input)

* Measuring 0 (1) ~5V / 0~10V / 0~10mA /
  0(4)~20mA from flow-meter  or others.
* Option 2-wire sensor with 24Vdc supply.
* Option output for one of 2 relays, analog.
* Dimension: 96mmW x 48mm(H)
.

4 1/2 Digit Resistance Controller

* Measuring resistance 0~2000ohm/2000ohm
  /20.0Kohm/200.0Kohm. (2-Wire System)
*
Accuracy: ±0.04%.
* Display range -19999 ~ 29999.
* Option: Analog output / RS485 comm.
PDF Data Sheet
PDF Data Sheet PDF Data Sheet
10 Digit Totalizer (Pulse Input)

* Measuring Auto Range 0.01Hz~100kHz /
  ~140kHz (optional) from flow-meter for
  Flow/Totalizer or Encoder for Linearly Line
  Speed/Length Application.
* Dual Display Screen for Totalizer & Batch or
   PV (process value).

4 1/2 Digit Volt & Amp Meter Relay
-Dual Display

* Measuring 2-channels Voltage and Current
  for DC / AC /  TRMS in dual isolated input.
* Accuracy: ±0.04%.
* Display range -19999 ~ 99999 with math
  function Addition/Subtraction/Multiplication/
  Division/High or Low selector in channels.


4 1/2 Digit Volt & Amp Meter Relay

* Measuring Voltage 0~600V or Current
  0~10A for DC /AC/TRMS.
* Accuracy: DC ±0.04%, ±AC 0.1%
* Display range -19999 ~ 29999.
* Option: Analog output / RS485 comm.

PDF Data Sheet PDF Data Sheet PDF Data Sheet

DC Signal Converter & Isolator

* Input signal for  4~20mA (with loop power)
* Output 4~20mA with loop power, self-power
   or auxiliary power available.
* Din Rail mounting with ultra slim in 7.2mm.

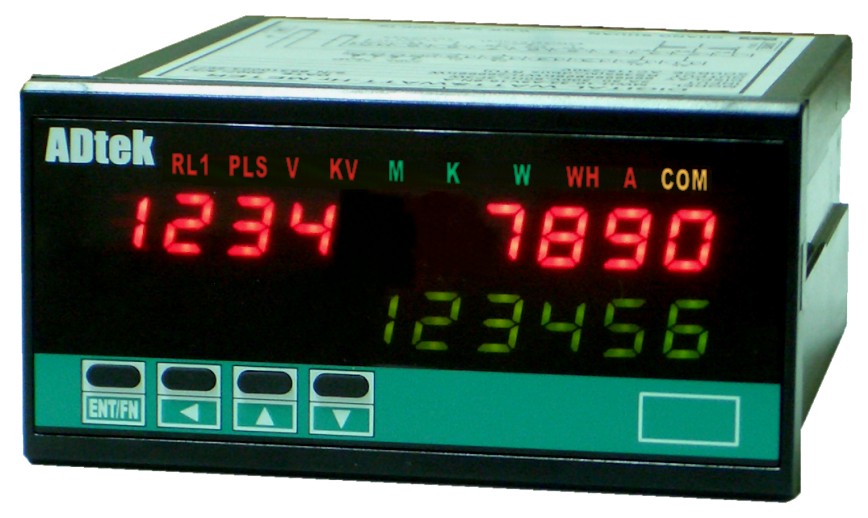

CPM-10 Dual Display Multifunction Meter

* Input 1P2W, 1P3W, 3P3W, 3P4W
   Unbalance/Balance load system's active
   power, reactive power, apparent power
   and electric energy (Watt-Hr) parameter.
  * 4 Digits per channel.
  * Option: Pulse and RS485 comm. output.

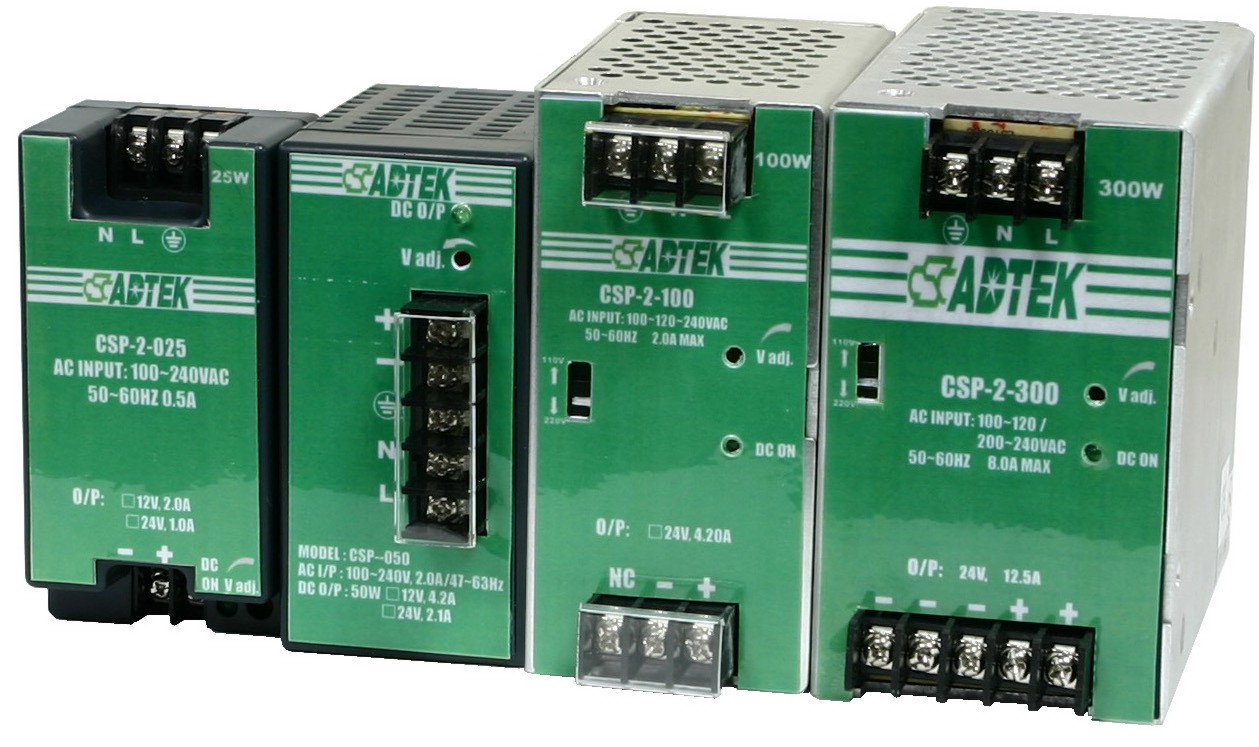

CSP-2 Switching Power Supply

* A wide range of selectable to meet various
   application.
* Power rating from 20 Watts to 500 Watts.
* Output Voltage 5Vdc, 12Vdc, 24Vdc.
* Compact Size with Din Rail mounting.

PDF Data Sheet PDF Data Sheet PDF Data Sheet

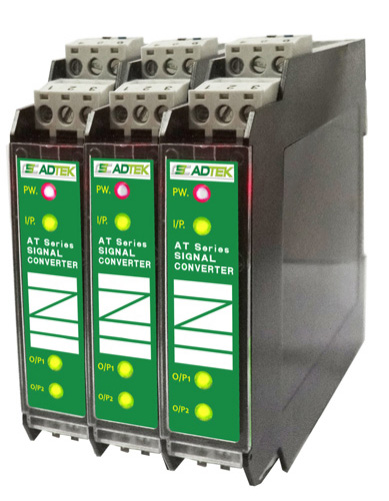

AT Series Signal Converter & Isolator

* Input signal for  Thermocouple type K, J, E, T
   4~20mA, 0~10V, RTD (Pt100ohm), Load
   Cell, Potentiometer and AC Voltage/Current
* Output for 0~5V / 0~10V / 1~5V / 4~20mA.
* Dual different signals available.
* Din Rail mounting with width in 17.5mm.

HTS Humidity & Temperature Transmitter

* Dual Display for 0.0 ~50.0șC and 0~100%RH
* Dual current output for Temp and Humi.
* Low output ripple.
* CE approved.
* Accuracy: Temperature ±0.3șC
                    Humidity ±2%

CSP-3 Switching Power Supply

* Universal Power AC90~264V /
   DC127~380V.
*
Power rating from 20 Watts to 500 Watts.
* Output Voltage 5Vdc, 12Vdc, 24Vdc, 48Vdc
* Din Rail mounting.
* RoHS and UL option available.
PDF Data Sheet PDF Data Sheet PDF Data Sheet

Engineering Work & Services
Control Panel Fabrication and Design - We have been in this field of work as long as we can remember. Basically, our custom make electrical panels are mainly relates to industrial control system such as
water treatment plant, sewage treatment plant, chemical control system, boiler control system, and many more. The panel design are make to suit to the specific system as per customer requirement.
Our engineering team will generate all the necessary documentation and drawing i.e. Electrical Control Wiring Diagram, Control Panel Layout Drawing, Control Philosophy Diagram and etc.

System Process Programming - Our engineers are very knowledgeable on the programming of PLC, HMI and SCADA for particular product such as Mitsubishi PLC, Omron PLC, Yokogawa Stardom, Yokogawa FA-M3,
Yokogawa FAST/TOOLS, Proface HMI, Schneider PLC, Phoenix Contact PLC, Citect SCADA and etc.

Site Installation & Cabling Work - Our site installer team are capable and experience that can execute job in any location required. We do provide short circuit testing, wiring looped test, meggar test and others as required.
